This is an n8n community node. It lets you use VLM Run in your n8n workflows.

VLM Run is a unified gateway for Visual AI that enables you to extract structured data from unstructured visual content like images, videos, and documents using Vision Language Models (VLMs).

n8n is a fair-code licensed workflow automation platform.

💾 Installation

Follow the installation guide in the n8n community nodes documentation.

npm install n8n-nodes-vlmrun

⚙️ Operations

• Extract Data: Extract structured data from images using VLM Run's pre-defined schemas
• Custom Schema: Use your own custom schema to extract specific data from visual content
• Process Documents: Extract information from documents like invoices, IDs, and more
• Visual ETL: Integrate visual data extraction into your automated workflows

🎯 Available Actions

🗂️ Doc AI Actions

• Resume Parser: Parse and extract structured data from resumes
• Invoice Parser: Extract information from invoice documents
• Presentation Parser: Parse and analyze presentation files
• AI Assisted Form Filling: Automated form filling using AI

🖼️ Image AI Actions

• Image Captioning: Generate descriptive captions for images

🎵 Audio AI Actions

• Audio Transcription: Convert audio content to text

🤖 Agent AI Actions

• Github: GitHub repository analysis and insights
• LinkedIn: LinkedIn profile and data processing
• Market Research: Automated market research analysis

🧪 Experimental Actions

• Image Embeddings: Generate embeddings from images
• Document Embeddings: Create embeddings from documents

🔑 Credentials

1. Sign up for a VLM Run account at vlm.run
2. Get your API key from the dashboard
3. Use the API key in the n8n VLM Run node credentials

📦 Compatibility

• Requires n8n version 1.0.0 or later
• Node.js version 18 or later

📖 Usage

1. Configure Credentials:

   • Add your VLM Run API credentials in n8n
   • Set the API base URL (default: https://api.vlm.run/v1)

2. Add VLM Run Node:

   • Search for "VLM Run" in the n8n nodes panel
   • Add it to your workflow

3. Configure Node:

   • Select the operation (Extract Data, Custom Schema, etc.)
   • Provide the input image URL or file
   • Choose or define the schema for data extraction
   • Configure any additional parameters

📸 Screenshots

Here are some screenshots of the n8n-nodes-vlmrun in action:

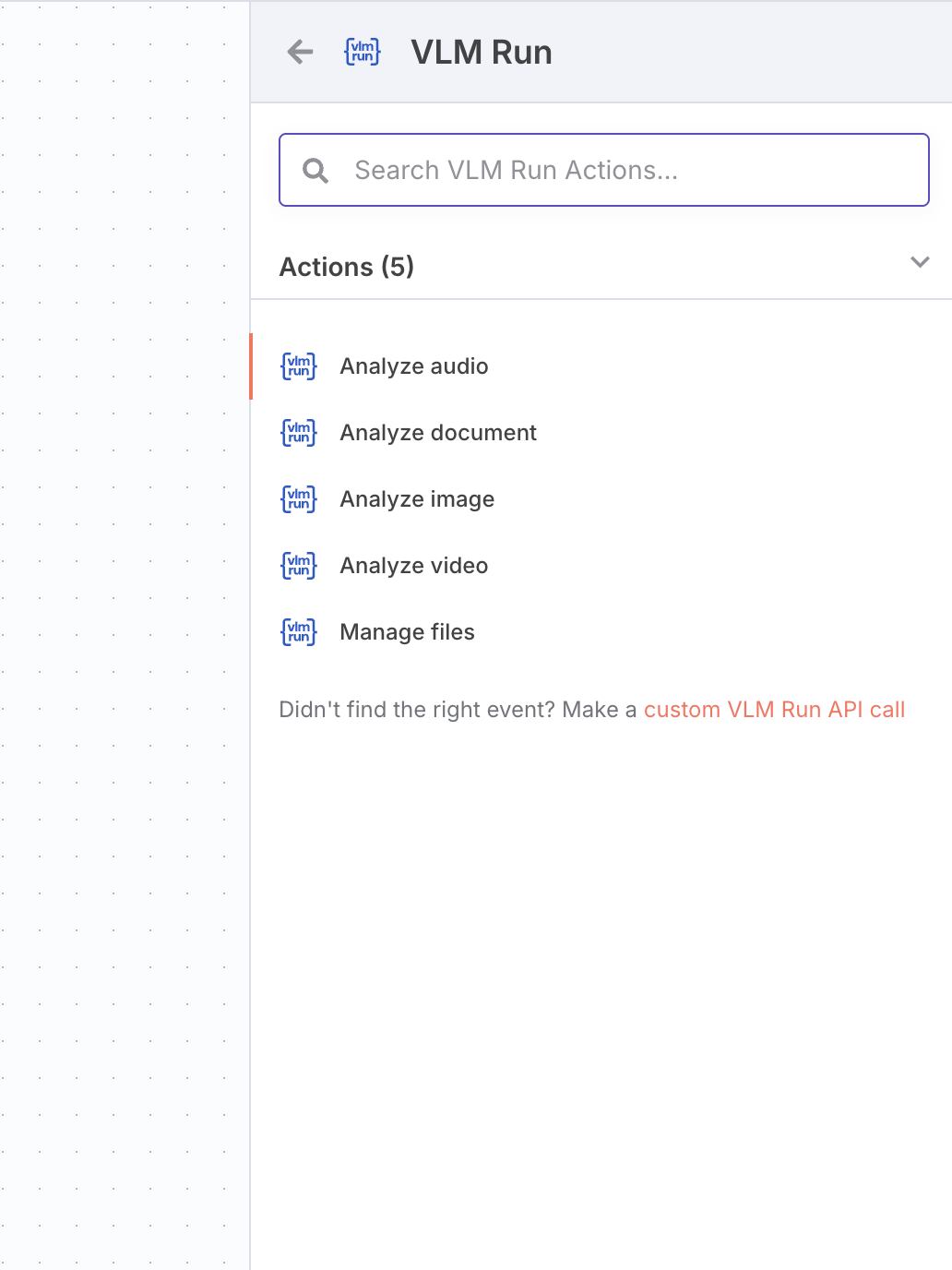

Overview of the VLM Run node in n8n

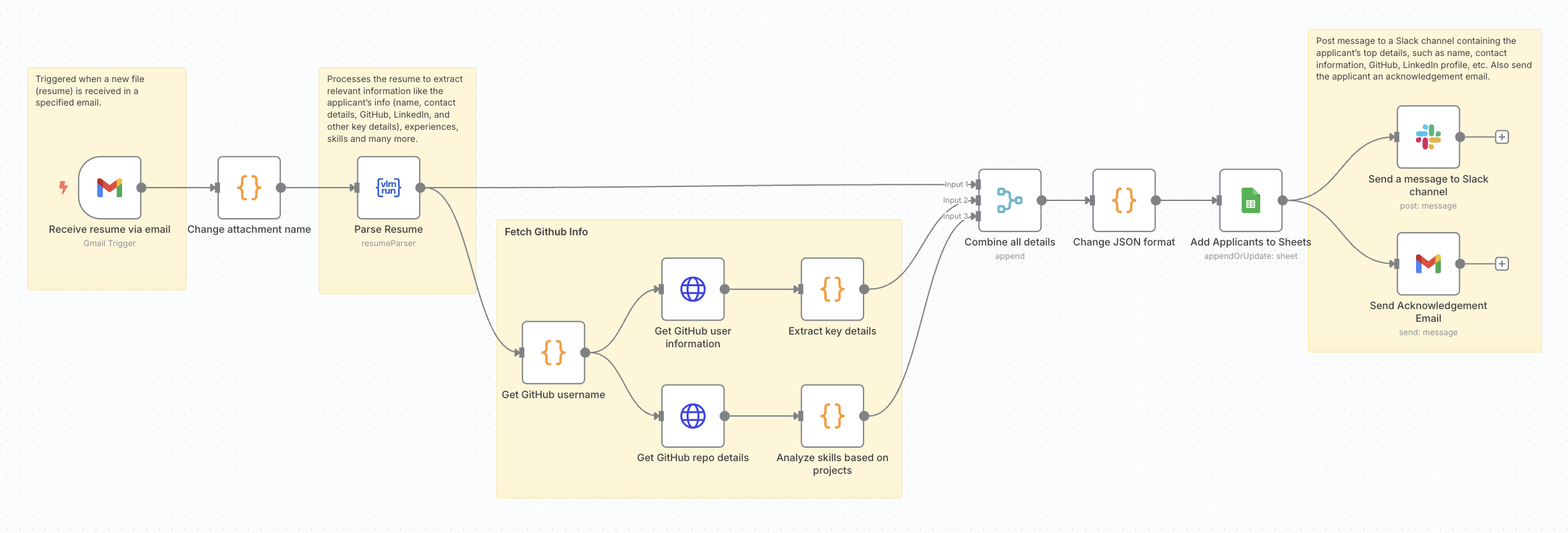

Example workflow using the VLM Run node

🔗 Resources

• n8n Community Nodes Documentation
• VLM Run Documentation
• VLM Run API Reference
• Example Workflows

📝 Version History

0.1.5 (Current)

• Initial public release
• Basic VLM Run integration
• Support for pre-defined schemas
• Custom schema support
• Document processing capabilities

📄 License

MIT
